Identification of food and drug administration-approved drugs with activity for hepatitis B virus – A computational drug repositioning approach

A. Yunusa1, S. O. Bello1, A. Chika A1, A. Yakubu2

1Department of Pharmacology and Therapeutics, Usmanu Danfodiyo University, Sokoto, Nigeria, 2Department of Internal Medicine, Usmanu Danfodiyo University, Sokoto, Nigeria

Address for correspondence: A. Yunusa, Department of Pharmacology and therapeutics, Usmanu Danfodiyo University, Sokoto, Nigeria. E-mail: abdulmajeedyunusa@gmail.com
Submitted: 01-08-2019, Accepted: 12-09-2019, Published: 27-09-2019

ABSTRACT

This study was aimed at identifying generic drugs with activity against hepatitis B virus (HBV). It has two components; computational and in vitro studies. The computational study entails sequential screening of all food and drug administration-approved drugs (1491) against three protein targets; through structural- and ligand-based pharmacophores screening followed by molecular docking of the selected drugs against the viral targets. Two drugs with the best binding affinities against the viral targets were chosen for an in vitro confirmation of activity. The non-toxic concentrations used for the study were established from 3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide cytotoxicity study using Cmax of the drugs as a guide. Iodixanol and sirolimus had the best binding affinities against the three viral targets. Again, iodixanol and sirolimus produced a concentration-dependent viral killing in the antiviral studies. Sirolimus produces a significant anti-HBV virucidal effect (27.1%) at 0.4 µg/ml not different from the effect by lamivudine (29%).

Keywords: Antiviral, drug repositioning, ligand-based pharmacophore, molecular docking, pharmacophore modeling, structure-based pharmacophore, viral load


INTRODUCTION

Infectious diseases are becoming more alarming with high morbidity and mortality in developing countries like Africa.[1] Viral infections like hepatitis B virus (HBV) is often regarded as an incurable and fatal disease.[1] Again, the emergence of drug-resistant strains has compromised the efficacy of most antiviral agents; some have troublesome and unbearable side effects while some are less efficacious.[2,3] Drug repositioning approach might be a better alternative for discovering more effective and less harmful antiviral agents. The high cost of developing drugs has limited the number of antiviral agents into a shortlist.[4]

Viral hepatitis is becoming more alarming with the increasing incidence of chronic viral hepatitis progressing into chronic liver disease and liver cirrhosis. It is estimated that about one-third of the world’s population are living with hepatitis B viral infection.[5] Globally, about 400 million people are living with HBV and its the tenth leading cause of death.[5] Twenty-three million Nigerians are currently living with HBV while about 20 million Nigerians are living with both hepatitis C and B viruses.[6] The prevalence of hepatitis B and C in Africa is 10–20% and 6%, respectively.[7] Fewer agents such as interferon, lamivudine, and ribavirin are available for the treatment. These drugs have spectrum of intolerable side effects and low efficacy.[7]

Several scientists have attempted to reposition approved drugs for the treatment of HBV. For instance, Van de Klundert, Zaaijer[8] evaluated 640 FDA-approved drugs for their ability to inhibit HBV transcription in HepG2 transfected cells. Terbinafine a squalene epoxidase anti-fungal agent was found to potently suppress HBx-mediated HBV RNA transcription.

The aim of the study was to identify generic drugs with activity against HBV through in silico screening and wet laboratory confirmation.

MATERIALS AND METHODS

Criteria for Viral Targets Selection

The HBV viral targets were selected based on validated selection criteria and scoring.[9] The criteria include: Involvement in a critical pathway necessary for the survival and replication of the viruses, confirmed or putative targets of known antiviral agents, absence of significant cross-talk from NCBI blast search, drugability of the target (easily accessible binding site), and site or location of the protein target within virus; either on the cell surface/cytoplasm or inside the nucleus.[9] Targets with score of at least 80 out of 115 were selected and considered as critical in the survival and multiplication of the viruses.[10]

Development of Local Database of Viral Protein Targets from Protein Data Bank (PDB)

PDB is an archive of 3D structures of about 35,000–50,000 biological molecules. Three HBV viral targets (in PDB text format) necessary for their survival and multiplication were selected and downloaded from the PDB website (www.rcsb.org) and saved in PDB text format. A local database was created for the viral targets in my personal computer.[11]

Development of Local Database for FDA-approved Drug from DrugBank

A DrugBank is a drug database that contains more than 4000 compounds linked to about 14,000 molecular targets. All (1491) FDA-approved drugs were downloaded from DrugBank website (www.drugbank.ca) and saved in structural data format.[12]

Structure-based Pharmacophore Screening

LigandScout advanced molecular design software was used to generate structure-based pharmacophore for each viral targets using the target – cocrystallized ligand complex as a template.[9]

Ligand-based Pharmacophore Screening

Ligand-based pharmacophore was generated using all the cocrystallized ligands for the nine different viral targets as templates. The generated ligand-based pharmacophore can be merged or shared similarity pharmacophore.[9]

Screening of FDA-approved Drugs using the Structural and Ligand-based Pharmacophores as Templates

The structure and ligand-based pharmacophores were copied to the screening perspective using the copy board widget. Approved drugs downloaded from the DrugBank were loaded to the screening database using the “create and load screening database.” The generated pharmacophores were screened against the approved drugs and the drugs with similar pharmacophores were displayed in the tabular form compatible with excel.[13]

Docking Simulation of the Selected Drugs from Pharmacophore Screening against Three HBV Viral Targets using PyRx Virtual Screening Tool

Importation of macromolecules from the local database

To import macromolecule from local database, File > Import molecule was selected, this displays “import molecule wizard” carrying different options. Workspace Tarball > local File was then selected and “Next” button clicked followed by Finish button. Shortly an “Import Completed Successfully” dialog appears, and then OK button was clicked. The 3D structure of the macromolecule was displayed in the workspace, and the protein ID appears in the “molecule tab” of the navigator panel. Atoms of the macromolecule were viewed in the workspace by deselecting and selecting them in the “molecule tab” of the navigator panel. The macromolecule was inspected in the workspace by right clicking and holding the mouse. The binding site of the cocrystallized area examined, in shape, size, polarity, and accessibility.[13]

Importation of ligands from the local database

To import ligands from the local database, select open babel button in the control panel of the PyRx tool. Clicking the insert new item tab on the upper left-hand corner of the open babel panel, a “choose open babel supported file” box appears that take you to the ligand database in my personal computer. The ligand of interest was then selected and imported into the PyRx. The selected ligands appear in the open babel results table displaying the drugs ID, formula, weight, and LogP. Minimized atomic coordinates of the ligand were created using “the minimize all” widget. The minimized coordinate of the ligands right-clicked and different options displayed. The option “Covert all to AutoDock ligand PDBQT” was selected. The PDPQT format of the ligand appears in the ligand compartment of the AutoDock navigator area.[13]

Running the molecular docking simulation

The ligands of interest were selected from the AutoDock widget and “select ligand” button pressed, followed by the forward button. This automatically inputs the ligands into the ligand list in the control panel of PyRx software. Again, the macromolecules were selected from the AutoDock widget and “select macromolecule” button pressed followed by the forward button and this automatically input macromolecules into the macromolecule list in the control panel.[14]

To run Vina, the “run Vina” was clicked, and then forward button pressed. Finally “analyze result” was selected then forward button. This displays the binding affinities of the various poses against the ligands. The lower the binding affinities, the better the protein-ligand interaction since molecules interact to conserve energy.[14]

The analyze results page is where the final docking results were presented. The table was sorted according to the values of the binding energies. The table row was selected one by one to see the corresponding docking pose for each ligand-protein complex in the 3D scene. The numerical results were exported as a comma-separated values file compatible with Excel.[14]

Selection of the Best Two Performing Drugs for In vitro Antiviral Studies

Two drugs with overall best binding affinities against the three viral targets were selected for confirmation of activity in the wet laboratory using in vitro cell line-based assay. The analytical grade of the selected drugs was purchased from Sigma-Aldrich.

In vitro Model for HBV

Ten thousand cells/well were cultured in 24-well plates for 24 h to achieve 80–90% confluency. Media changed and the cells washed with phosphate buffer solution before the addition of viral particles.

  • •For HepG2 cells, l ml of serum infected with HBV (containing 4.7 LogIU/ml of virus) was added to each well.

The infected cells were maintained and propagated in Dulbecco’s Modified Eagle Medium medium supplemented with 10% fetal bovine serum and 1% penicillin/streptomycin and incubated at 37°C in a humidified and 5% CO2 chamber.[15]

In vitro Antiviral activity of the Two Selected Drugs

24 h post-infection, the three distinct cell lines were treated with three graded concentrations of the two selected drugs (in duplicates), Dimethyl sulfoxide (DMSO) treated and positive controls (in duplicates). The viral DNA was released following lysis of the infected cell lines at 24, 48, and 72 h post-treatment. The viral loads for each of the treatment groups were quantified using real-time polymerase chain reaction.

Determination of Percentage Viral Inhibition (%VI)

The %VI for each tested group was calculated using the formula: [16]

thumblarge

Where VC is the viral load of the DMSO treated group

VTG is the viral load of the treated group.

Determination of Half-maximal Inhibitory Concentration (IC50)

Nonlinear regression analysis curve generated by GraphPad Prism was used to extrapolate the IC50 of each drug against each virus. The IC50 is the concentration that produces 50% viral inhibition.[17]

Determination of Half-maximal Cytotoxic Concentrations (CC50)

Nonlinear regression analysis curve generated by GraphPad Prism was used to extrapolate the CC50 of each drug against each cell line. The CC50 is the concentration that produces 50% cell line viability.[17]

Determination of Selectivity Index (SI)

The SI for each drug against a particular cell line was calculated using the formula.[17]

thumblarge

Data Analysis

Data were presented in tables and graphs and were expressed as mean±SEM. The IC50 and CC50 were extrapolated from a sigmoidal dose-response curve. Statistical differences between the viral loads for the different drug groups and distinct post-treatment time points were analyzed using a two-way ANOVA followed by Dunnett’s multiple comparison test. P < 0.05 was considered to be statistically significant. All analyses were performed using GraphPad Prism version 7.

RESULTS AND DISCUSSION

Results

Three selected protein targets and their scores

Three viral protein targets were identified and validated. The total score for each viral target was greater than 80, hence validated [Table 1].

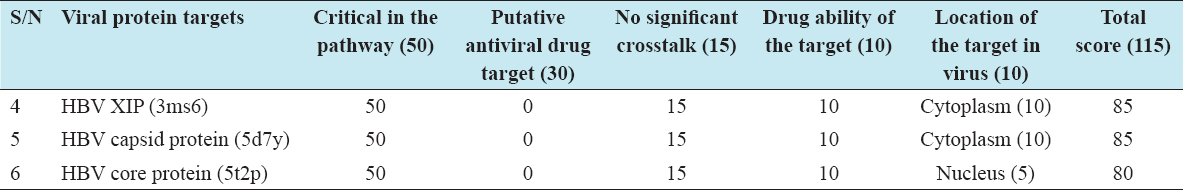

Table 1: Three selected protein targets and their scores

thumblarge

Selected Drugs from Structure- and Ligand-based Pharmacophore

Three hundred and eight (400) FDA drugs and forty-three (40) drugs were selected from the structure- and ligand-based pharmacophore screening.

Best Two Drugs and there Binding Affinities

Iodixanol and sirolimus had the best binding affinities against the three HBV targets. The binding affinities for each drug against the viral targets were greater than that for the respective cocrystallized ligands [Table 2].

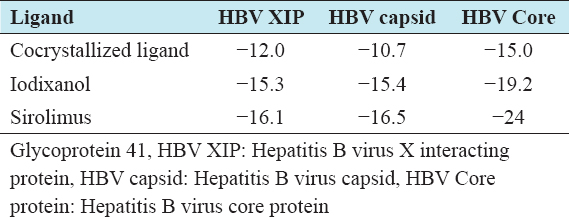

Table 2: List of best two drugs and there binding affinities

thumblarge

Pharmacophores for the Three Viral Targets and the Two Selected Drugs

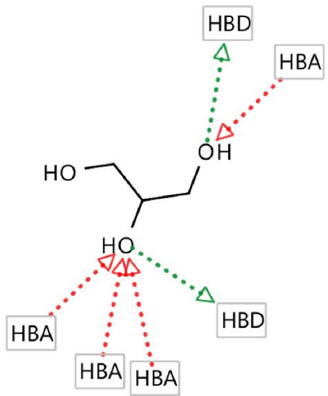

Hydrogen bond donor (HBD), hydrogen bond acceptor (HBA), negative ionizable areas (NI), and hydrophobic interactions (H) were the common structure and ligand-based pharmacophores features, as shown in Figures 1-7.

thumblarge

Figure 1: Structure-based pharmacophore for hepatitis B virus capsid protein (5D7Y)–cocrystallized ligand complex

thumblarge

Figure 2: Structure-based pharmacophore for hepatitis B virus core protein (5T2P) –cocrystallized ligand complex

thumblarge

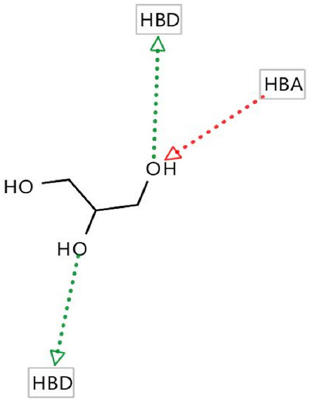

Figure 3: Structure-based pharmacophore for hepatitis B virus X protein (3MS6) –cocrystallized ligand complex

thumblarge

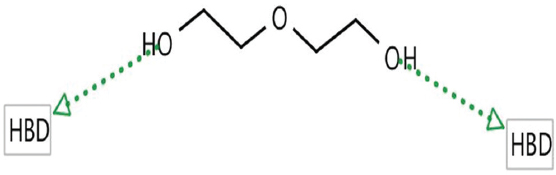

Figure 4: Structure-based pharmacophore for hepatitis B virus X protein (3MS6) –cocrystallized ligand complex

thumblarge

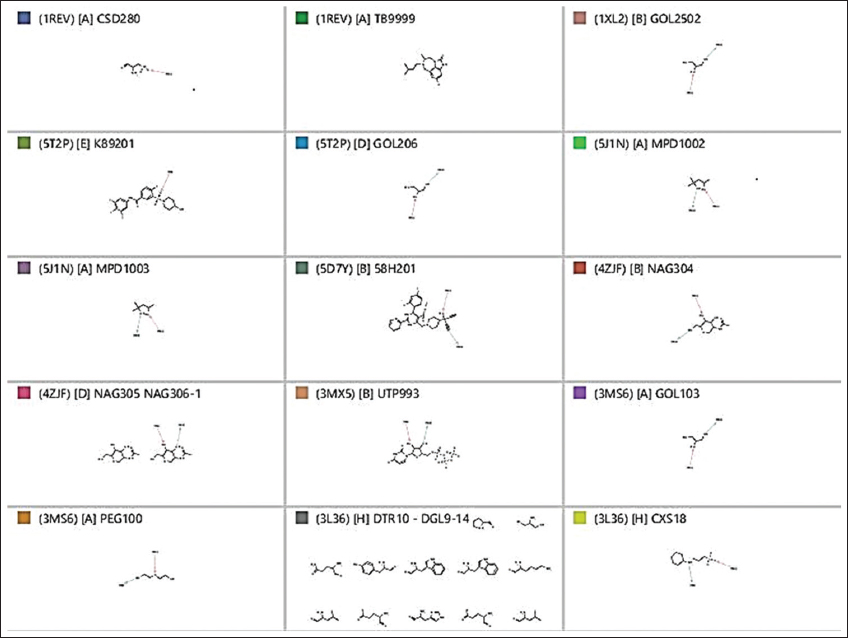

Figure 5: Ligand-based pharmacophore for the nine viral targets

thumblarge

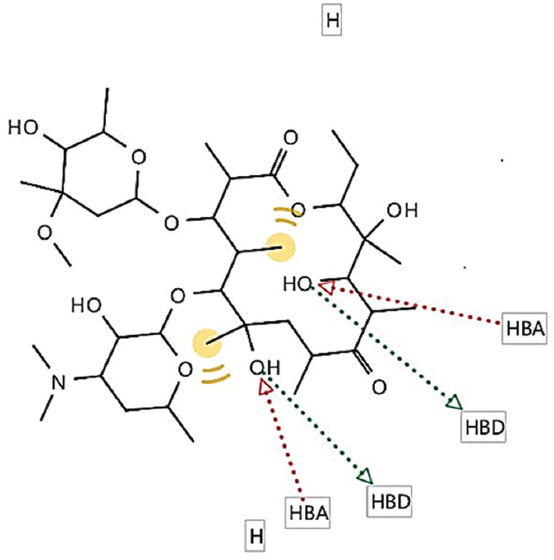

Figure 6: Generated pharmacophore for sirolimus

thumblarge

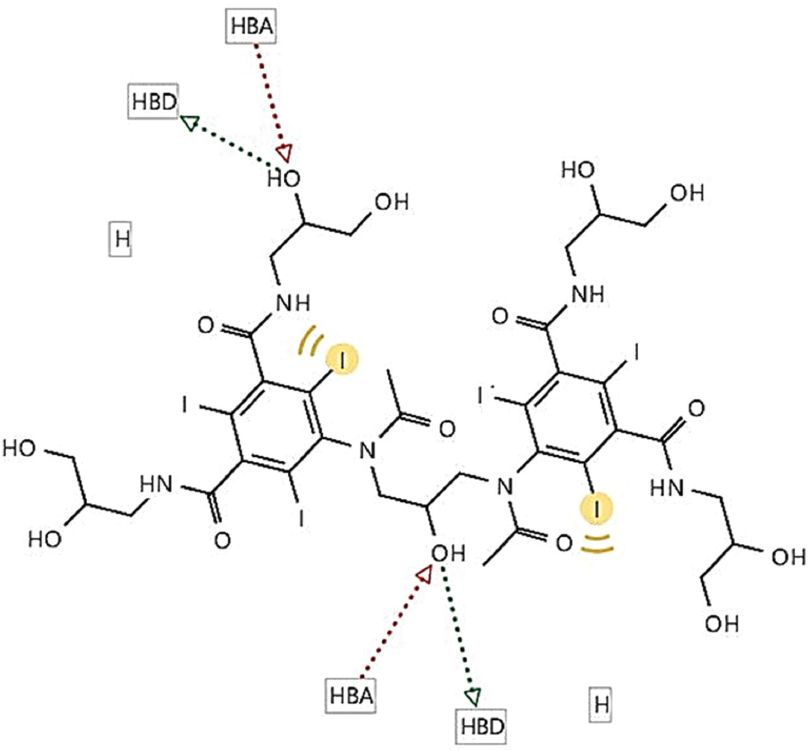

Figure 7: Generated pharmacophore for iodixanol

Three Graded Nontoxic Concentrations of the Two Selected Drugs for the In Vitro Antiviral Studies

The three graded non-toxic concentrations for iodixanol and sirolimus from MTT cytotoxicity study were used for the antiviral study. The concentrations of the stock solution for each drug and the volume of stock to make the highest concentrations were calculated. This is to allow easy serial dilution during drug treatment [Table 3].

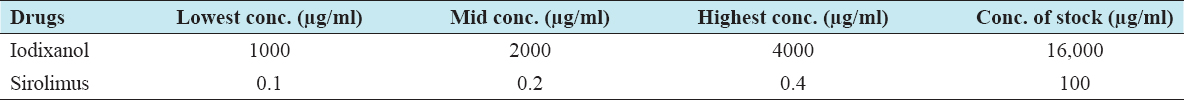

Table 3: Three graded nontoxic concentrations of the two selected drugs for the intensive in vitro antiviral studies

thumblarge

In Vitro Virucidal Effects of the Two Selected Drugs against HBV

The virucidal effect of iodixanol and sirolimus against HBV was significantly different from the negative control in all the post-treatment groups at the three graded concentrations. The virucidal effect of iodixanol (12.5%) and sirolimus (12.1%) was not significantly different from lamivudine (11.5%) in the 48 h post-treatment groups at lowest non-toxic concentrations [Table 4]. Again sirolimus had statistically the same virucidal effect (27.1%) with lamivudine (29.0%) in the 24 h post-treatment groups at highest non-toxic concentrations. Sirolimus produced a high viral killing effect than iodixanol across the post-treatment groups for the three graded concentrations [Table 5].

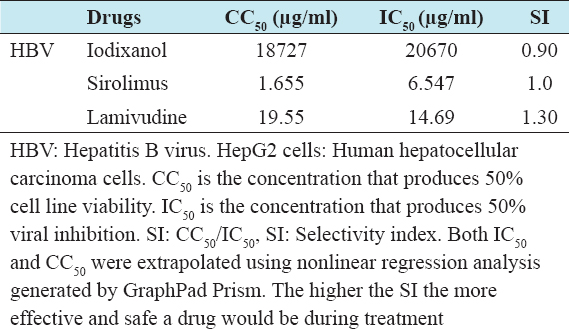

Table 4: SI of iodixanol and sirolimus of HBV infected HepG2 cells

thumblarge

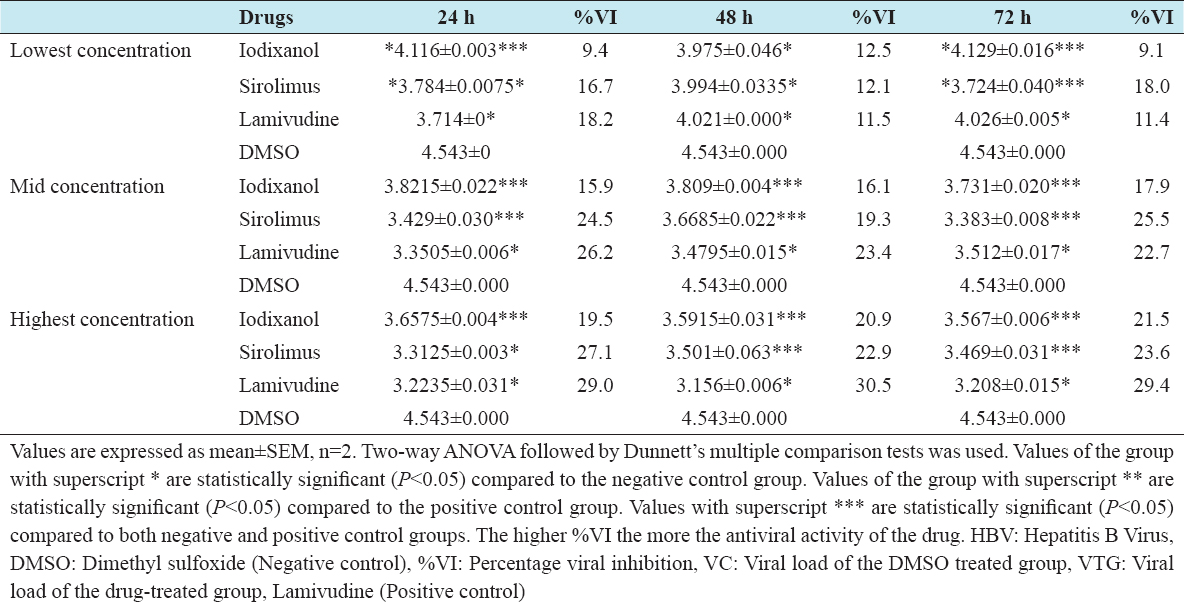

Table 5: In vitro virucidal effects of iodixanol, sirolimus, and lamivudine against HBV

thumblarge

DISCUSSION

The study showed that sirolimus demonstrated a concentration-dependent viral killing effect against HBV statistically different from the vehicle-treated group in the three different post-treatment time points. In addition, the maximal effect was seen in the 24 h post-treatment group indicating that 24 h is the optimal effective period for sirolimus against HBV. At Cmax (0.1 µg/ml), the virucidal effect was only 18%, statistically different from the DMSO treated group. However, at the highest non-toxic concentration of 0.4 µg/ml, a significant virucidal effect (27.1%) not statistically different from 29.4% for lamivudine was recorded. Conversely, the IC50 of sirolimus against HBV was 1.6µg/ml, by far greater than the Cmax (0.1 µg/ml), indicating that sirolimus is less potent for HBV. In addition, the SI for sirolimus against HBV infected HepG2 cells was 1, signifying a less margin between the effective and toxic concentrations. However, the SI of the lamivudine, on the other hand, was 1.3, implying that lamivudine was slightly more selective for HBV compared to sirolimus.

Comparably, sirolimus shared similar pharmacophore features (2 HBA, 2 HBD, and 2 hydrophobic interactions) with all the structure and ligand-based pharmacophores generated from the hepatitis B viral targets. This might be a possible molecular reason for its activity against HBV. Again, sirolimus had the highest (24) predicted binding affinity against HBV core protein; hence, its mechanism of action against HBV might be related to the high affinity for HBV core protein. In addition, the 3D structure of sirolimus superimposes with the 3D of the respective cocrystallized ligands for three HBV targets; again, this might further explain its in vitro anti-HBV activity.

From the literature search using different search parameters, this study was the first to identify the anti-HBV effect of sirolimus. However, sirolimus an inhibitor of mammalian target of rapamycin (mTOR) was found to be a potent inhibitor of HCV RNA replication using Huh-7.5 cells and primary human hepatocytes.[18] Again, In 42 HCV-infected liver-transplanted and kidney-transplanted patients who were switched to an mTOR inhibitor, decrease HCV RNA loads were reported.[19] It is also an established fact that efficient HCV RNA replication is dependent on the presence of the mTORC1 signaling pathway.[20] Sirolimus is also a central regulator of gene expression, translation, and various metabolic processes.[21]

Iodixanol, on the other hand, demonstrated a concentration-dependent viral killing effect against HBV, statistically different from the vehicle-treated group in the three different post-treatment time points. In addition, the maximal virucidal effect was seen in the 72 h post-treatment group, indicating that 72 h is the optimal effective period for iodixanol against HBV. At Cmax (1000 µg/ml), the virucidal effect was only 12.5%, which is statistically different from the DMSO-treated group. However, the highest virucidal effect of iodixanol at the highest non-toxic concentration of 4000 µg/ml was 21.5%, though statistically different from the 29.4% for lamivudine. Conversely, the IC50 of iodixanol against HBV was 20,670 µg/ml, by far greater than the Cmax (1000 µg/ml), indicating that iodixanol is less potent for HBV. Again, the SI for iodixanol against HBV infected HepG2 cell line in this study was 0.9, signifying that the drug is more toxic to the cell line than being effective. However, the SI of the lamivudine, on the other hand, was 1.3, implying that lamivudine is slightly more selective for HBV compared to iodixanol.

Comparably, iodixanol shared similar pharmacophore features (2 HBA, 2 HBD, and 2 hydrophobic interactions) with all the structure and ligand-based pharmacophores generated from the hepatitis B viral targets. This might be a possible molecular reason for its activity against HBV. Again, iodixanol had the highest (19.2) predicted binding affinity against HBV core protein; hence, its mechanism of action against HBV might be related to high affinity for HBV core protein. In addition, the 3D structure of iodixanol superimposes with the 3D of the respective cocrystallized ligands for three HBV targets; again, this might further explain its in vitro anti-HBV activity.

From the literature search using different search parameters, no known study has reported the anti-HBV effect of iodixanol. However, copper iodide, an iodine-containing compound exert antiviral activity against H1NI influenza by generating hydroxyl radicals.[22] Similarly, Povidone-iodine solution showed good efficacy against both enveloped and non-enveloped viruses, including adenovirus and polyomaviruses.[23] Conflictingly, an antimicrobial study revealed iodixanol not to impede bacteria growth in a culture media.[24]

CONCLUSION

The result of the study showed that iodixanol and sirolimus produced a concentration-dependent viral killing against HBV. The low potency and SI of the two drugs against the infected cell line are the issue of concern. It can be concluded that there exist generic drugs with activity against HBV.

Further evaluation of the iodixanol and sirolimus against the three viruses using different cell lines followed by in vivo studies at biosafety level IV is recommended. Combination analysis of iodixanol and sirolimus with known anti-retroviral drugs might yield fruitful result.
